End-to-End Workflow to Manage Catalyst SD-WAN Manager using Security Cloud Control Firewall Management

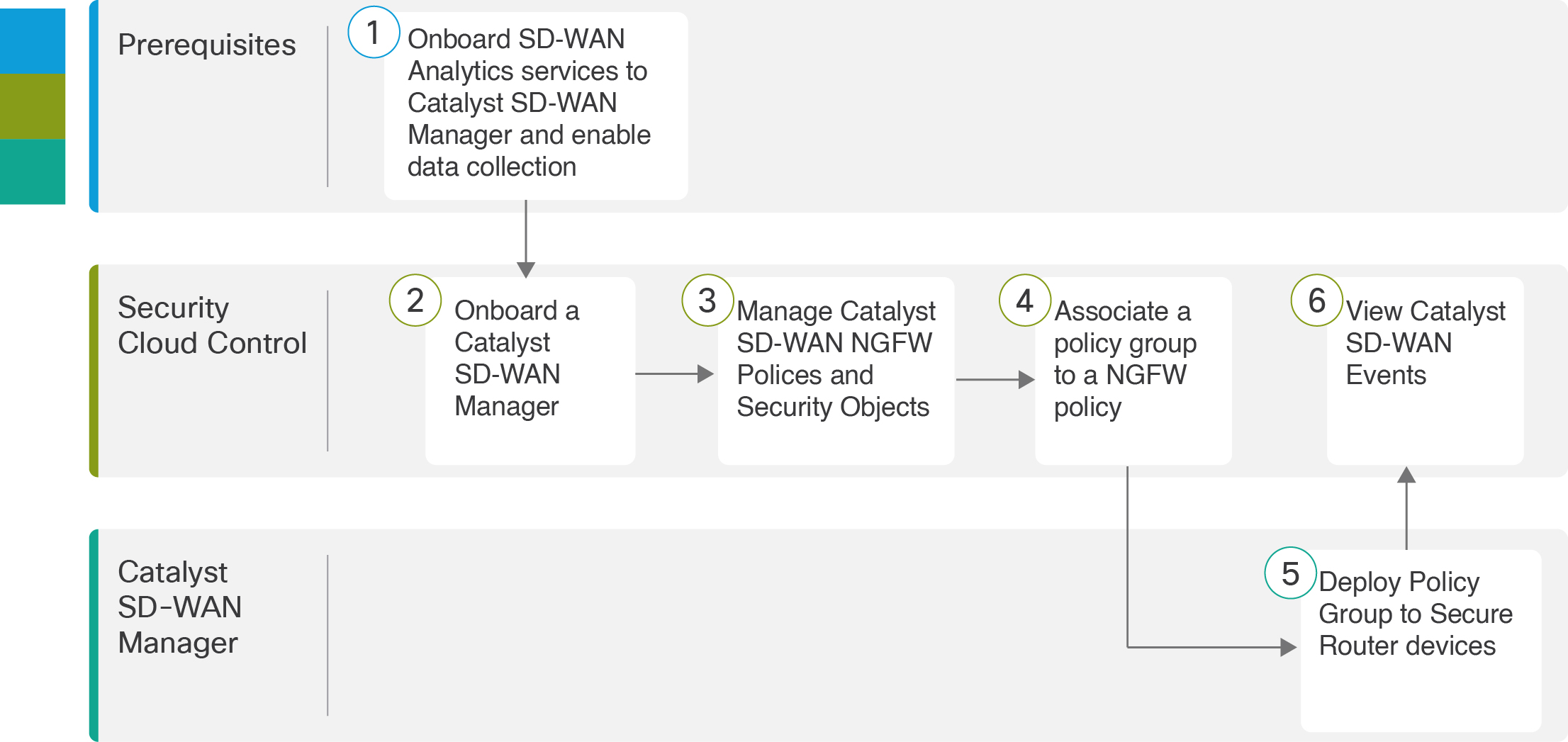

The following flowchart illustrates the high-level workflow for managing the firewall capabilities of Catalyst SD-WAN Manager using the Security Cloud Control Firewall Management .


Step	Application	Description
1	Prerequisites	Onboard the SD-WAN Analytics services to the Catalyst SD-WAN Manager and enable data collection. For more information, see Onboard Cisco SD-WAN analytics.
2	Security Cloud Control Firewall Management	Onboard a Catalyst SD-WAN Manager that also imports associated Secure Router routers. For more information, see Integrate Catalyst SD-WAN Manager with Security Cloud Control Firewall Management.
3	Security Cloud Control Firewall Management	Create, modify, or delete Catalyst SD-WAN security objects, security profiles, and NGFW policies. For more information, see Manage objects and profiles and Manage NGFW policies.
4	Security Cloud Control Firewall Management	Associate a group policy to a Catalyst SD-WAN NGFW policy. For more information, see Associate a group policy.
5	Catalyst SD-WAN Manager	Deploy Policy Group to Secure Router routers. For more information, see Policy groups configuration.
6	Security Cloud Control Firewall Management	View the security events received from Catalyst SD-WAN with Security Analytics and Logging for monitoring and threat detection. For more information, see Security Analytics and Logging (Saas) for Catalyst SD-WAN Devices.
